technische Diagramme

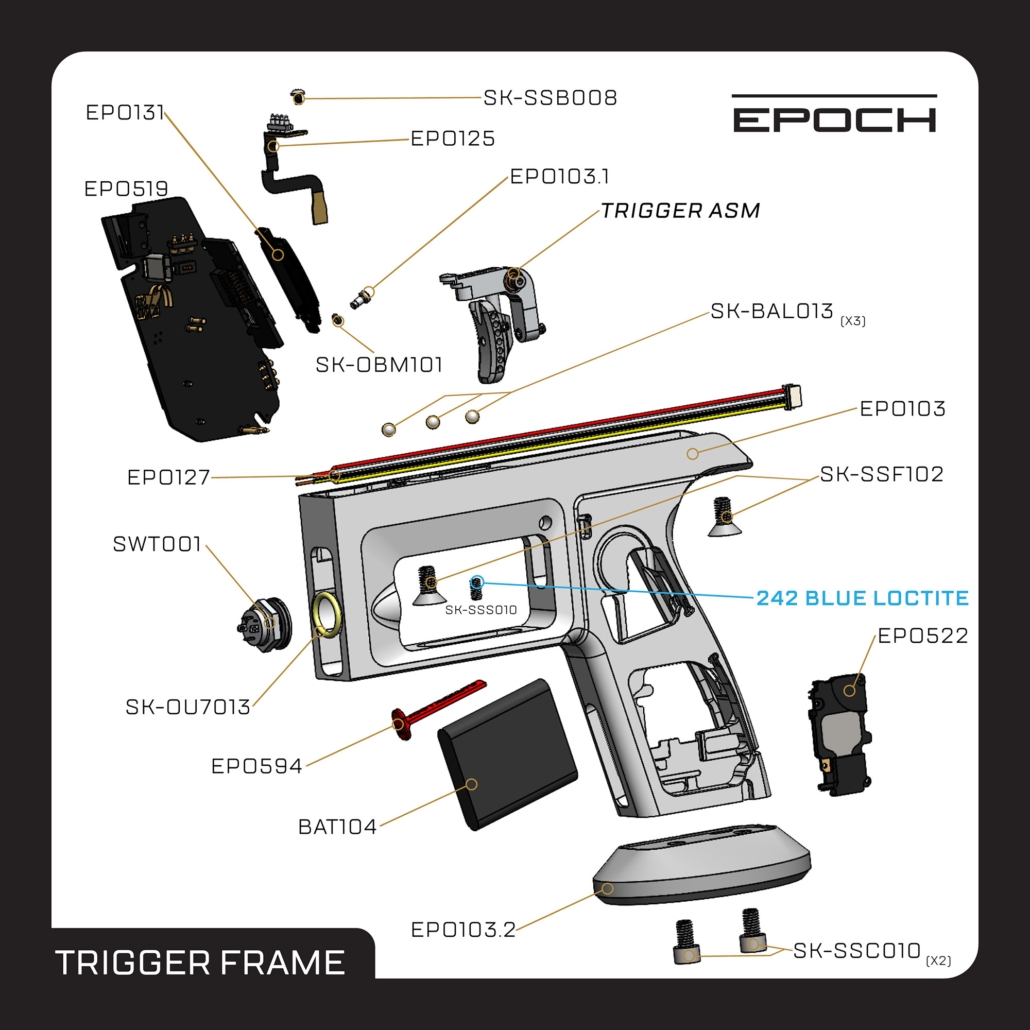

01-skoutairguns-epoch-trigger-frame-diagram-1-1030x1030

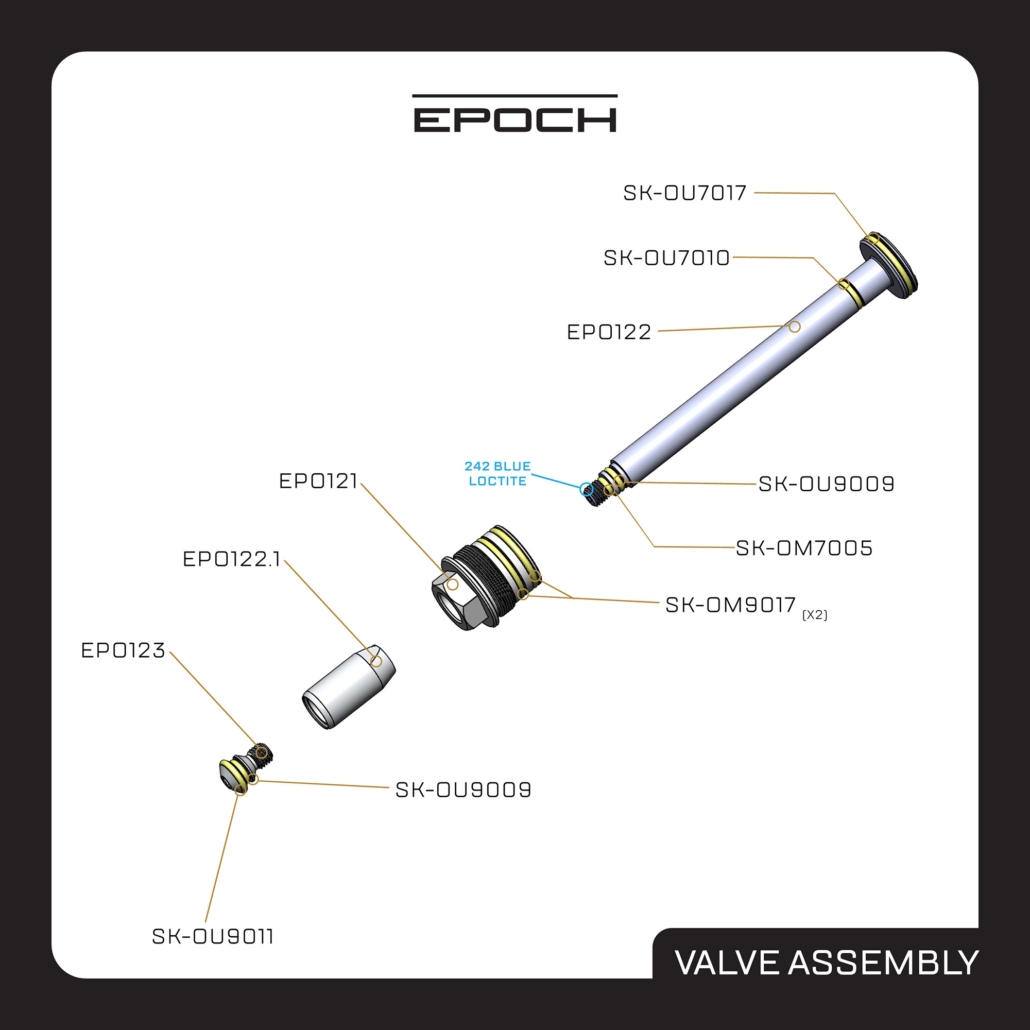

02-skoutairguns-epoch-valve-diagram-1030x1030

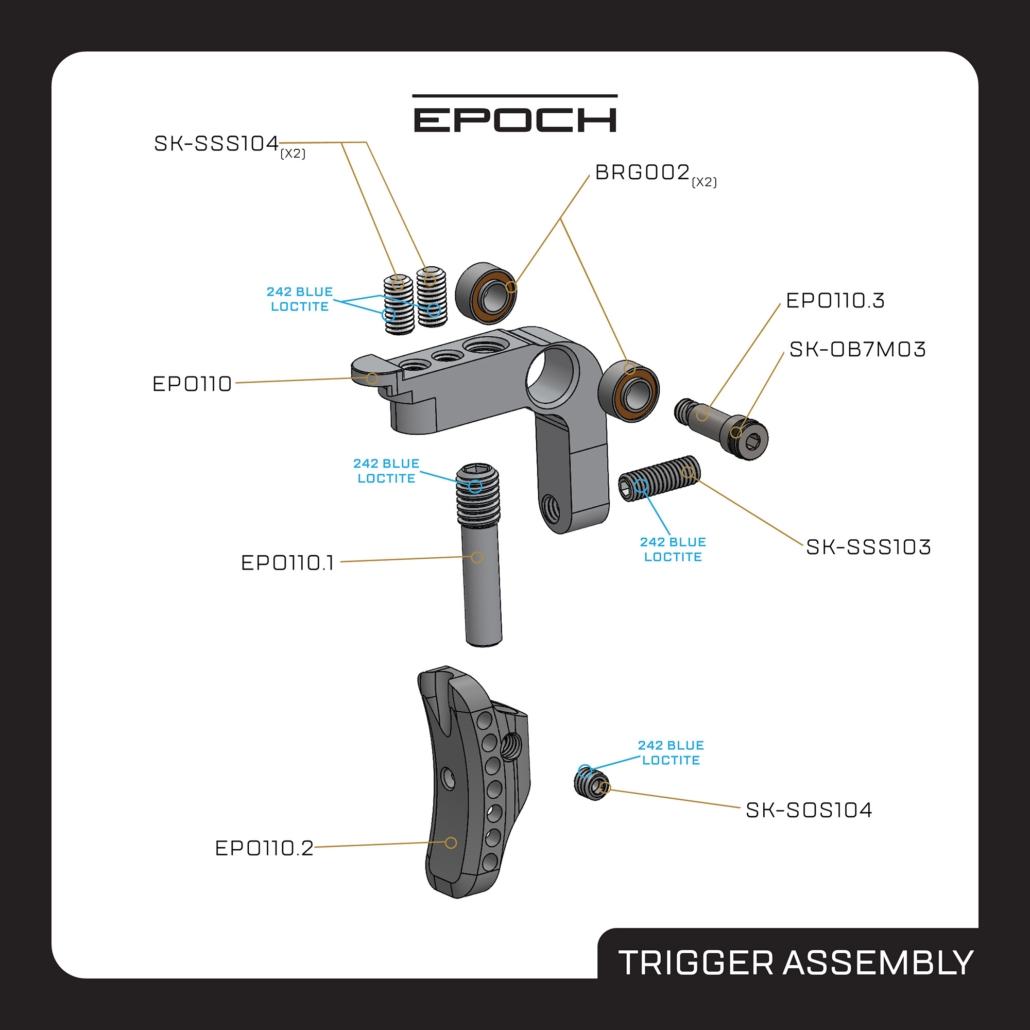

04-skoutairguns-epoch-trigger-diagram-1030x1030

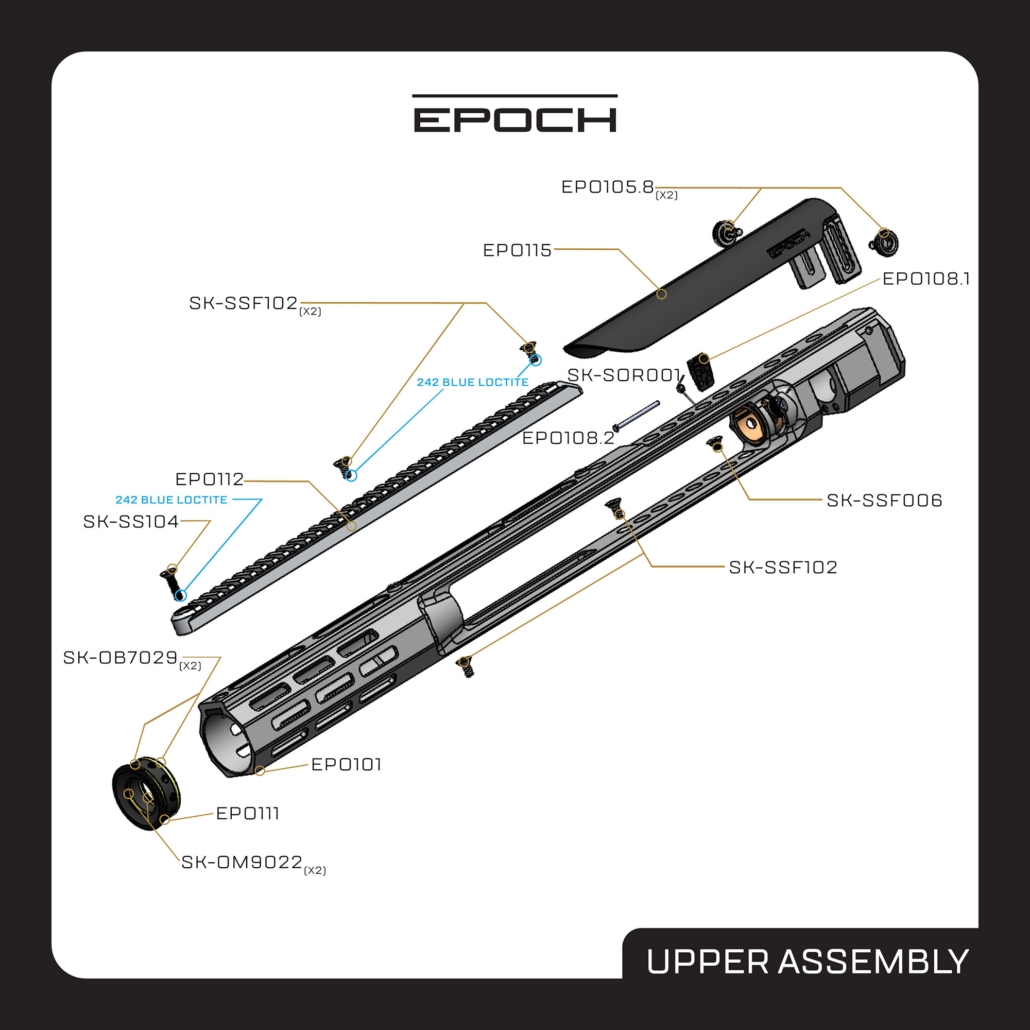

03-skoutairguns-epoch-upper-diagram-1030x1030

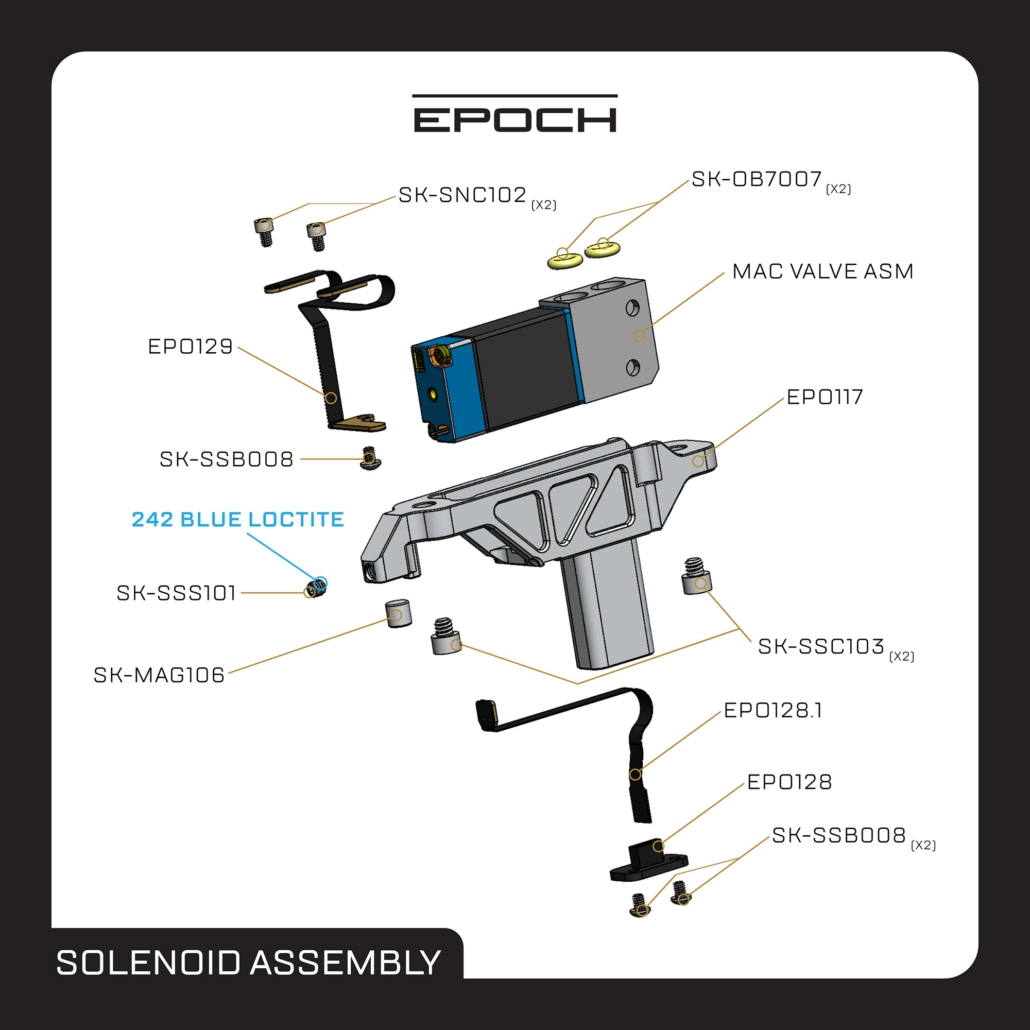

06-skoutairguns-epoch-solenoid-diagram-1030x1030

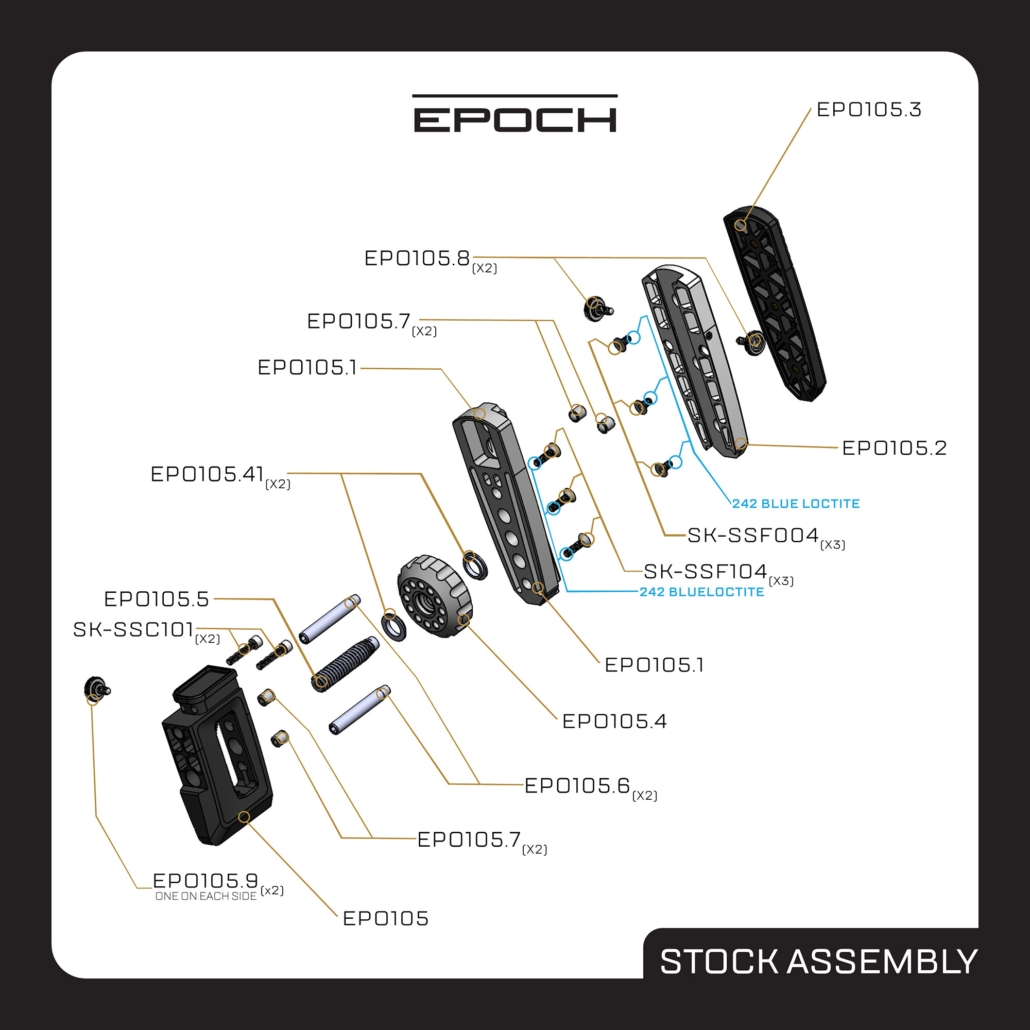

05-skoutairguns-epoch-stock-diagram-1030x1030

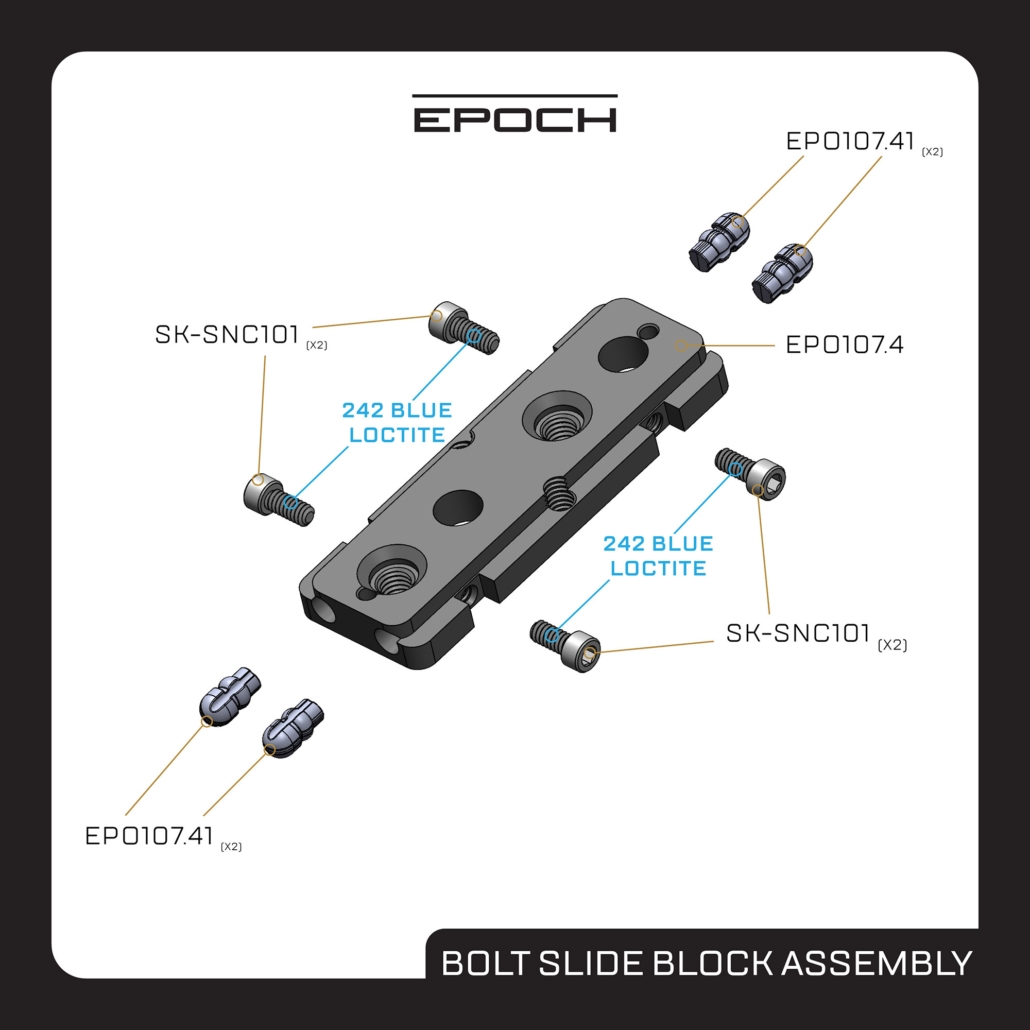

07-skoutairguns-epoch-slide-block-diagram-1030x1030

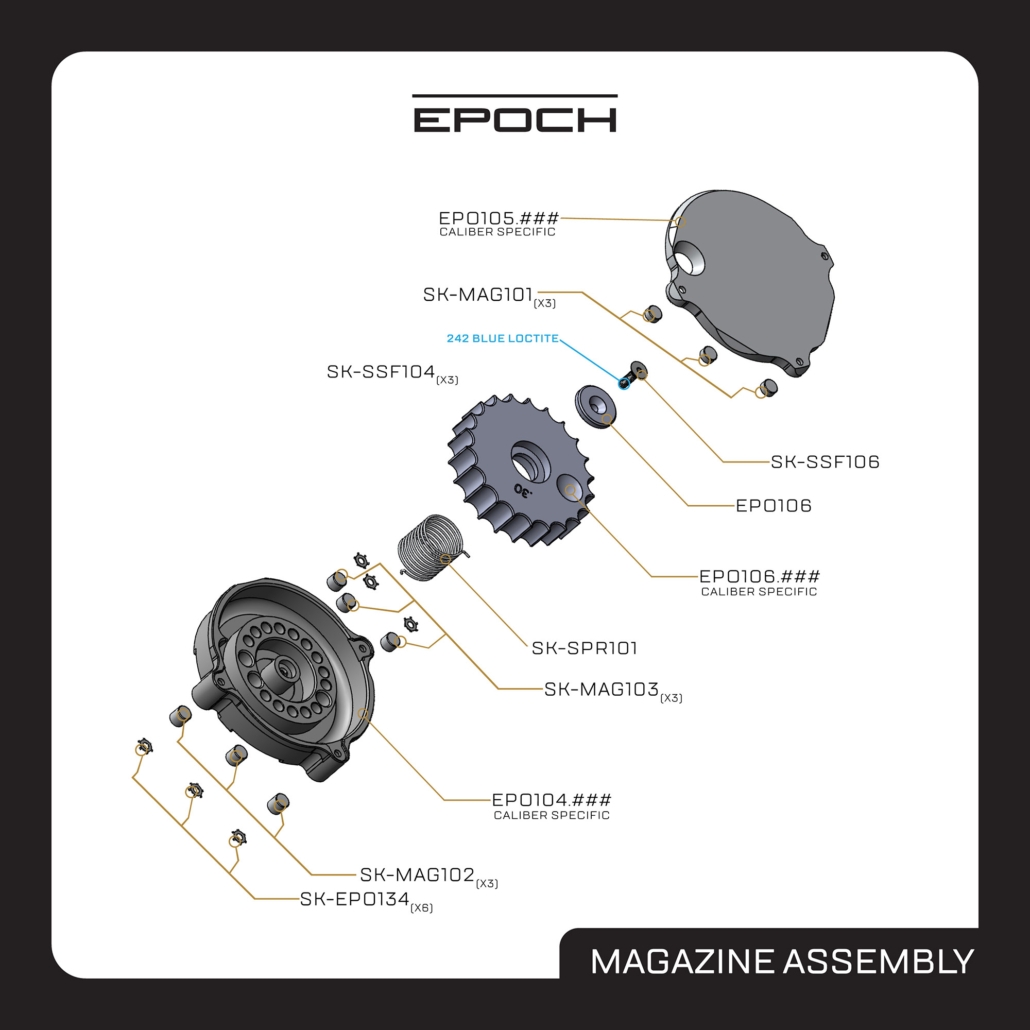

08-skoutairguns-epoch-magazine-diagram-1030x1030

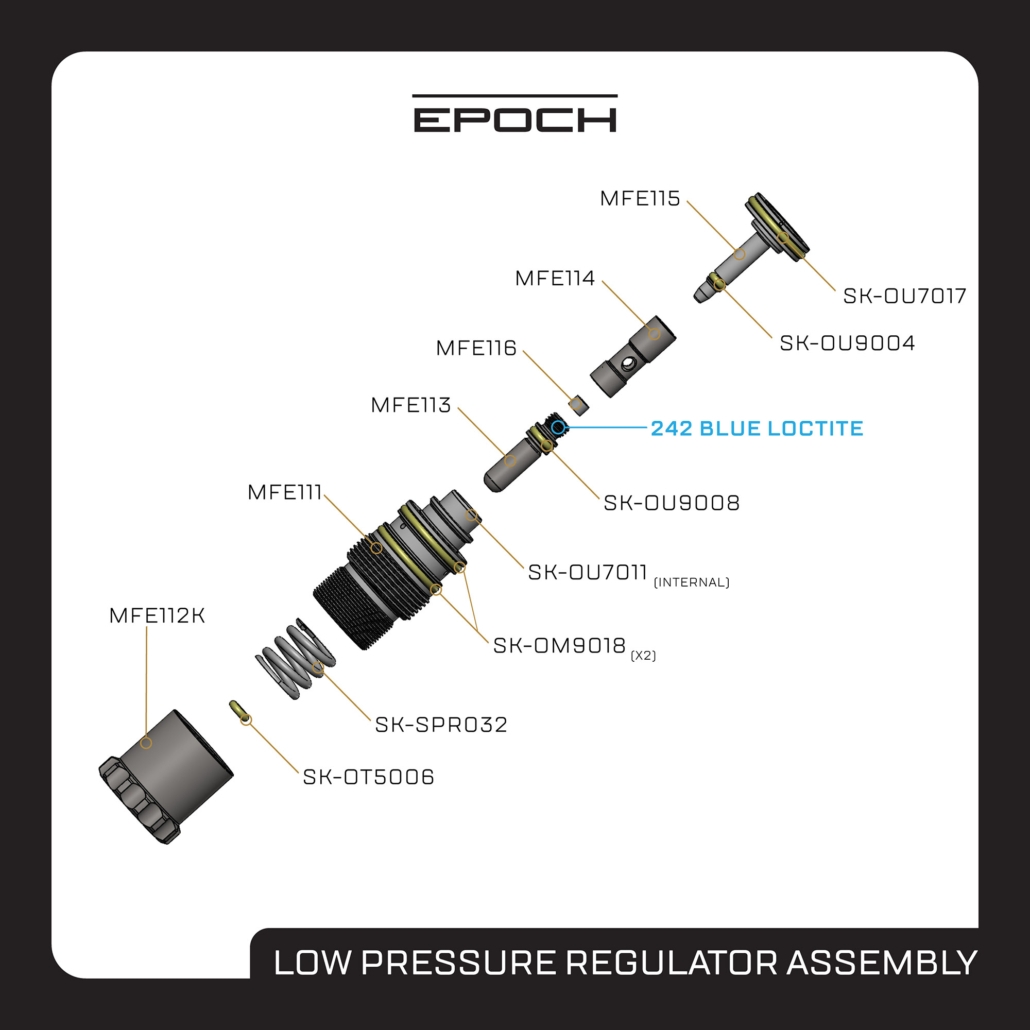

09-skoutairguns-epoch-lp-regulator-diagram-1030x1030

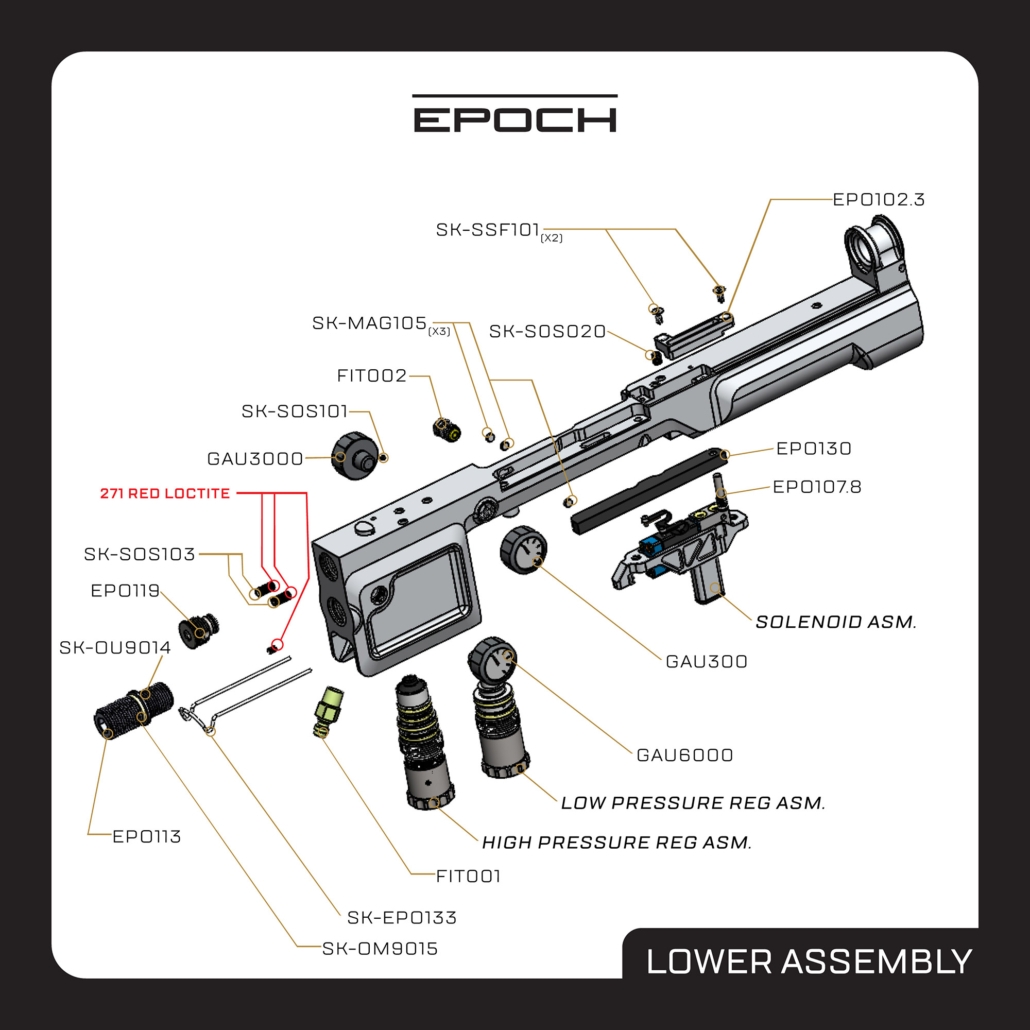

10-skoutairguns-epoch-lower-diagram-1030x1030

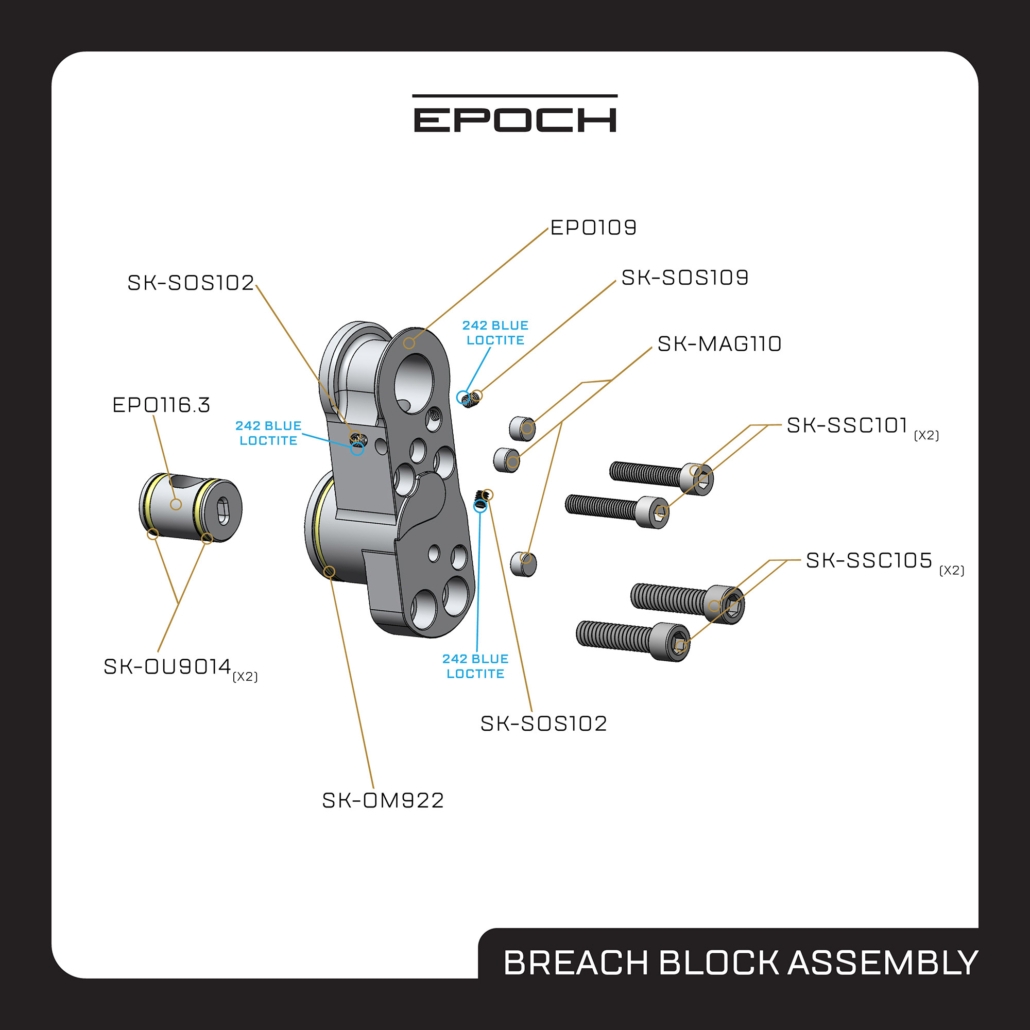

12-skoutairguns-epoch-breach-block-diagram-1030x1030

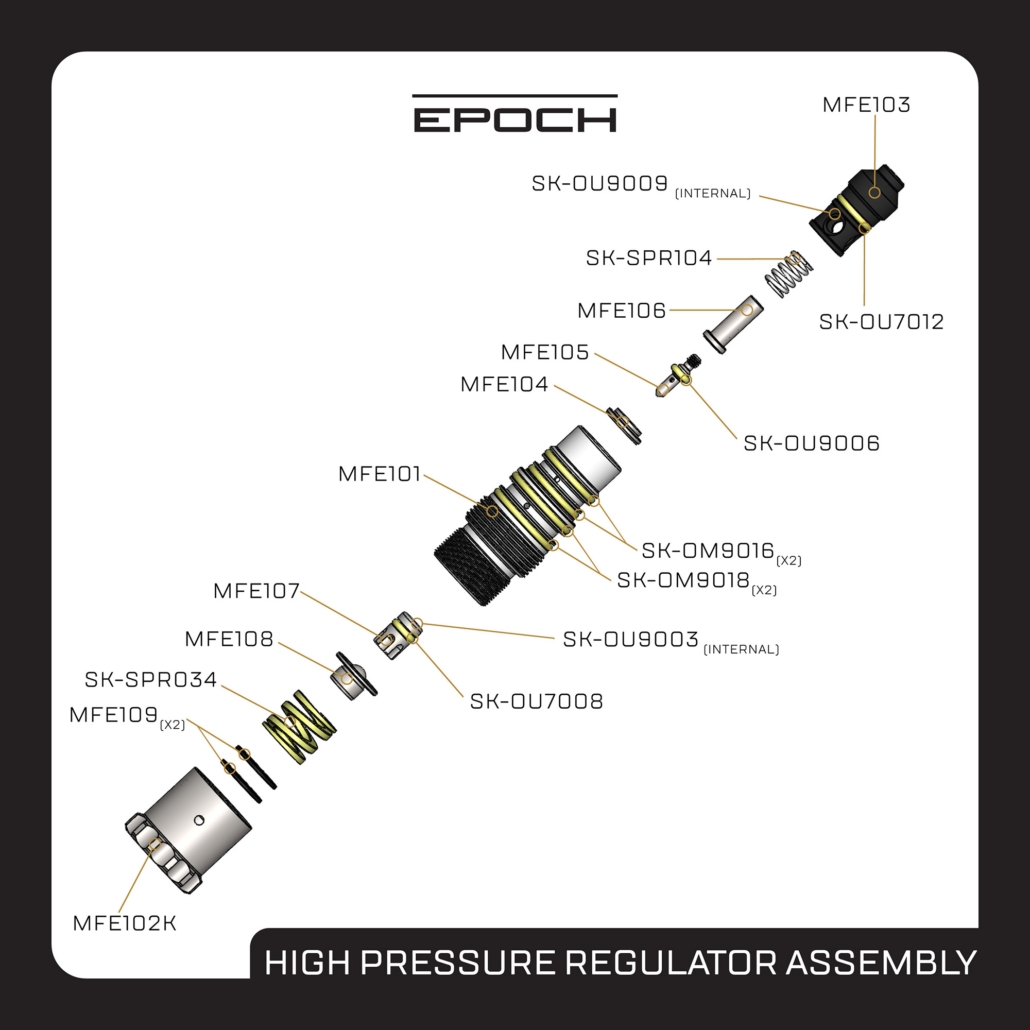

11-skoutairguns-epoch-hp-regulator-diagram-1030x1030

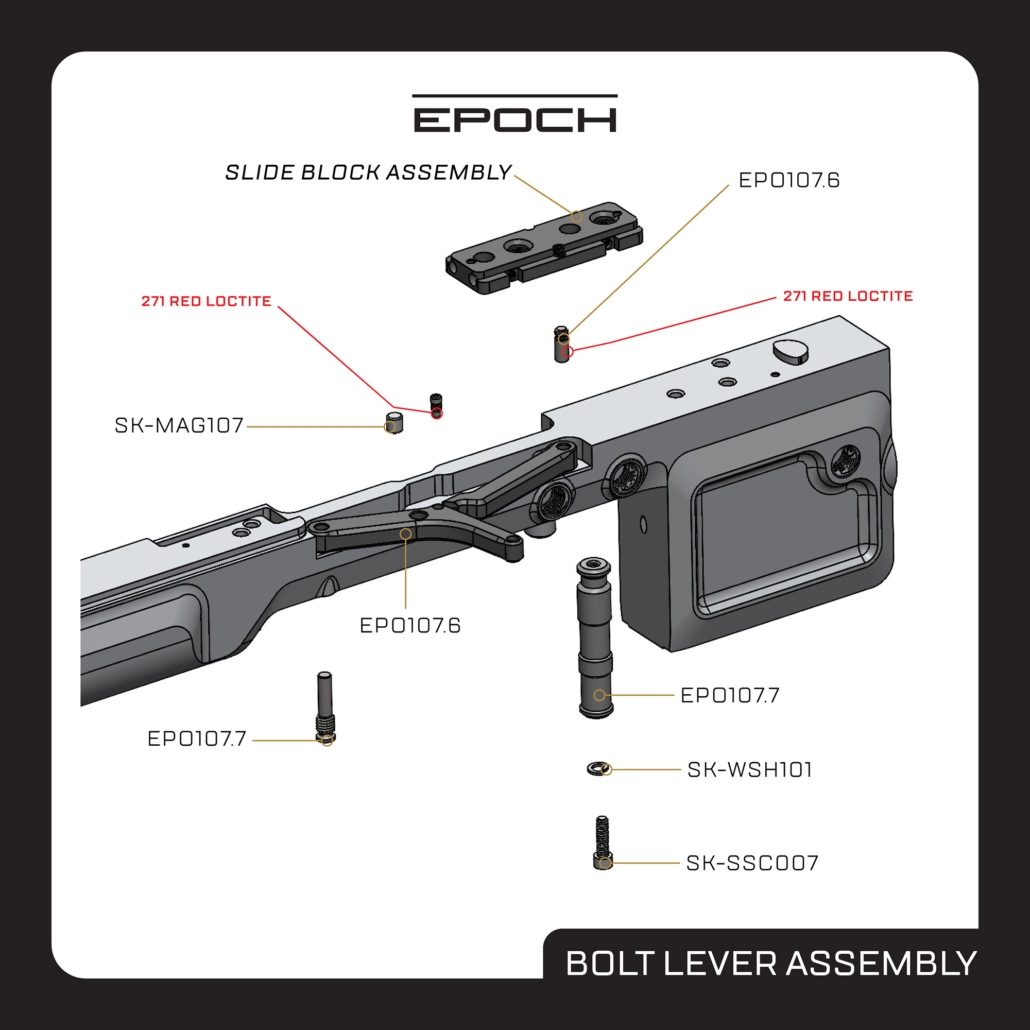

13-skoutairguns-epoch-bolt-lever-diagram-1030x1030

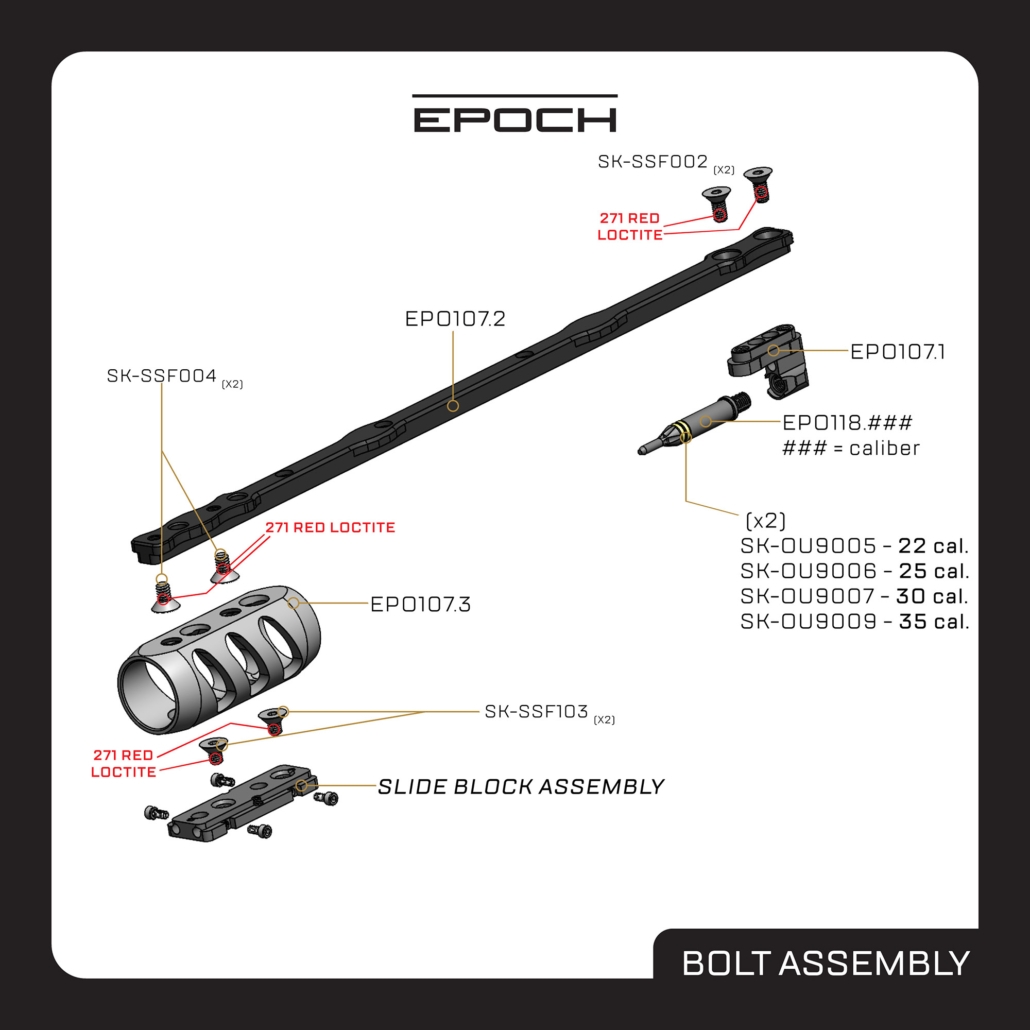

14-skoutairguns-epoch-bolt-diagram-1030x1030

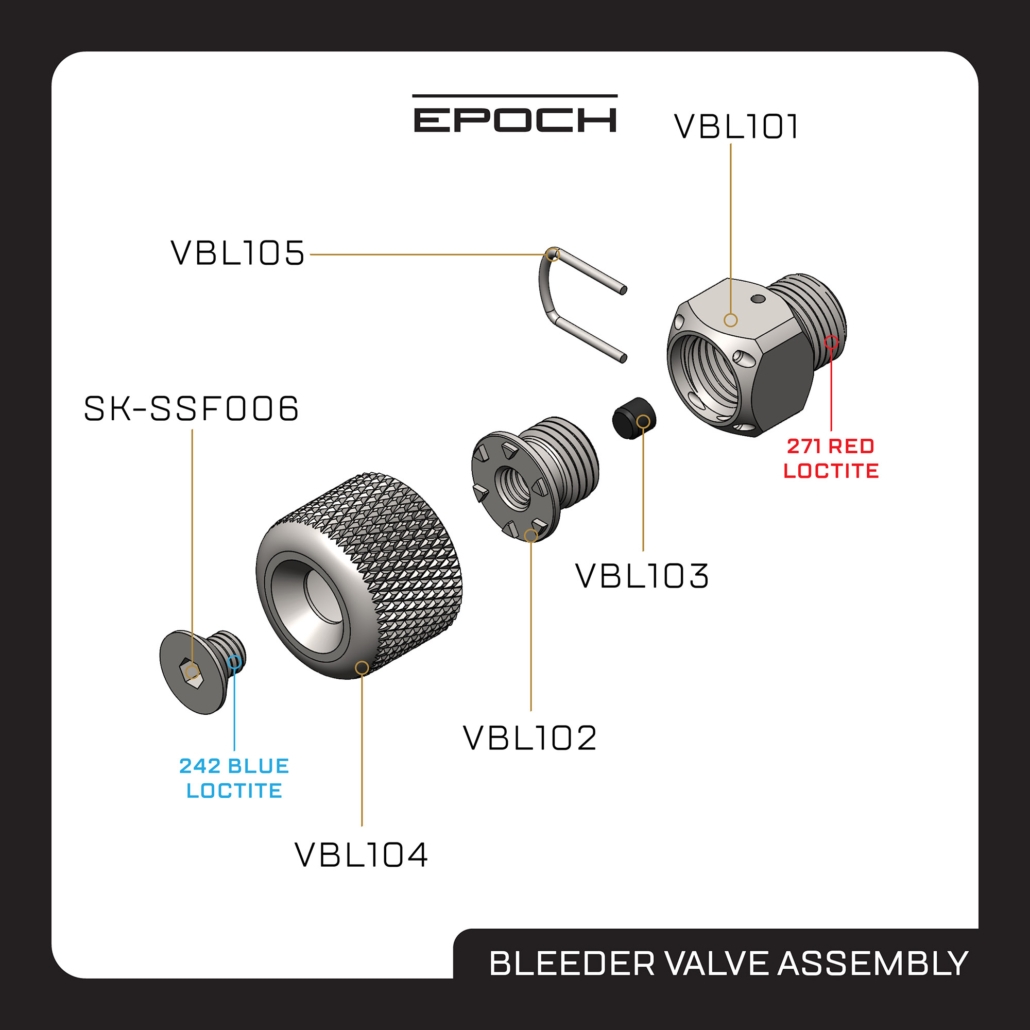

15-skoutairguns-epoch-bleeder-diagram-1030x1030
